Hornady Cam-Lock Case Trimmer Kit

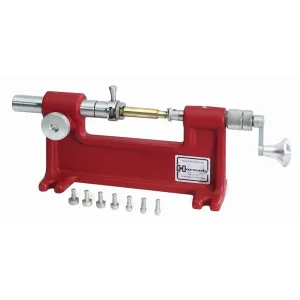

The Hornady Cam-Lock Case Trimmer is a reloading accessory for trimming cartridge cases to a consistent length. Its micro-adjustable cutter sets trim length in increments of 1/1000 inch without moving the case, and trim lengths are measured from the head of the cartridge.

A one-finger cam lock secures the case in place and releases it with a single touch. The large-diameter, replaceable cutting head handles cases up to .50 caliber, and the tall frame keeps knuckles clear of the bench. The unit uses shellholders rather than collets and weighs 8 ounces. Its steel construction is mounted through four holes on a base measuring 8 by 2-1/2 inches; mounting hardware is not included.

Hornady pilots for 22, 6mm, 270, 7mm, 30, 38 and 45 caliber are included. The trimmer will not work with Hornady Shellholder #37, used for 5.7x28mm FN and 25 ACP.

• Case capacity: Up to .50 caliber diameter
• Adjustment increment: 1/1000 inch
• Holding method: Shellholders, not collets
• Weight: 8 oz
• Material: Steel
• Base dimensions: 8 x 2-1/2 inches (L x W)
• Mounting: 4 holes, hardware not included
• Pilots included: 22, 6mm, 270, 7mm, 30, 38, 45 caliber
