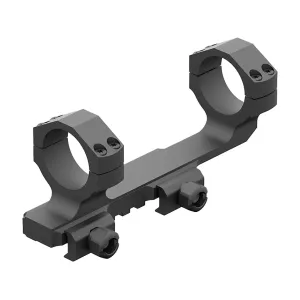

Leupold Mark 4 AR IMS 1-Piece 30mm Matte Scope Mount

The Leupold Mark 4 AR IMS 1-Piece is a scope mount for AR-15 platform rifles, designed to hold a 30mm scope tube. It uses a forward cantilever design that moves the optic forward for improved eye relief and field of view, and it positions the optic 1.4 inches above the rail, the same height as standard AR iron sights.

The mount is machined from aluminum and finished in matte black. It weighs 6.05 ounces and measures 5.43 inches overall, with 3.46 inches of length within the rings. Ring diameter is 30mm and ring height is listed as super high. The mount has no base cant. Torque specifications are 65 in-lbs for the keeper clamp and 28 in-lbs for the ring top screws.

The one-piece integral design attaches directly to the AR-15 Picatinny rail. The keeper length is 1 inch. The mount is made in the USA.

• Platform: AR-15
• Mount Type: Integral 1-Piece Picatinny
• Ring Diameter: 30mm
• Ring Height: 1.4 in (super high)
• Material: Aluminum
• Finish: Matte black
• Weight: 6.05 oz
• Overall Length: 5.43 in
