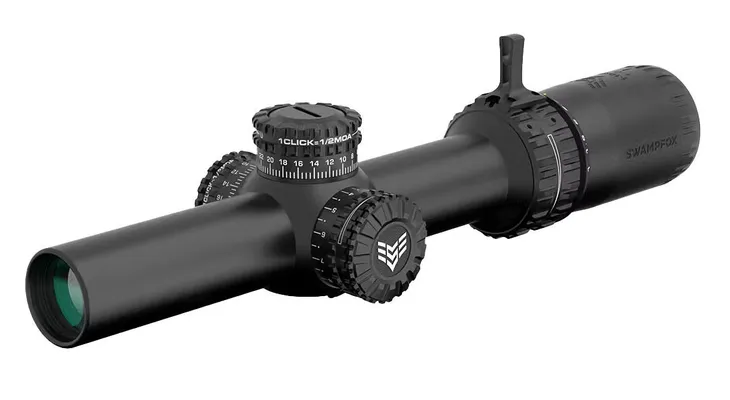

Swamp Fox Arrowhead 1-8x24mm SFP Red Guerrilla Dot MIL Reticle

Swampfox Optics Arrowhead Features The Arrowhead delivers a 1-8x magnification range with a 24mm objective lens producing an exit pupil of 7.7mm at 1x and 2.95mm at 8x with a field of view spanning 122.2 feet down to 14.4 feet at 100 yards across the magnification range. The push/pull locking turret system allows fast tool-free windage and elevation adjustments at 0.1 MIL per click across a total 100 MOA adjustment range in each axis with 60 clicks per rotation at 30 MOA per turn and a zero reset function for field-ready repeatability. Dual LED emitters illuminate the glass-etched reticle to daylight-visible levels across 12 positions with intermittent off settings that extend CR2032 battery life and two dedicated NVG-compatible low-light modes. For tactical and duty rifle shooters who require a reliable fast-transitioning optic from 1x CQB to 8x precision the Arrowhead is engineered to meet that demand in every condition. The Guerrilla Dot MIL reticle is a partially illuminated second focal plane design that presents a reflex-style aiming point at 1x while retaining a full 10 MIL tree for long-range holds at 8x where reticle accuracy is confirmed. Eye relief ranges from 3.35 to 3.54 inches across the magnification range and a fast focus diopter with a minus 2 to plus 2 adjustment range ensures a sharp reticle picture for shooters of all vision profiles. Fully multi-coated lenses with anti-fog and hydrophobic treatments maintain optical clarity in rain cold and high-humidity environments. The Swampfox Optics Arrowhead is parallax set at 100 yards and weighs 20.36 oz in a 10.67-inch overall length keeping the rifle balanced and handling naturally across platform types. For precision hunters 3-Gun competitors and serious rifle owners who want flagship LPVO performance with a red illuminated MIL holdover system the Arrowhead is the optic to reach for and is available at ARMSAGORA. Swampfox Optics Arrowhead Specifications Manufacturer: Swampfox Optics Model: Arrowhead Type: LPVO Riflescope Second Focal Plane Color: Black Reticle: Guerrilla Dot MIL Red Illuminated Magnification: 1-8x Tube Diameter: 30mm Objective Lens Diameter: 24mm Exit Pupil: 7.7mm - 2.95mm Eye Relief: 3.35 in - 3.54 in Field of View at 100 Yards: 122.2 ft - 14.4 ft Click Value: 0.1 MIL Parallax Setting: 100 Yards Travel Per Rotation: 60 Clicks / 30 MOA Max Elevation Adjustment: 100 MOA Max Windage Adjustment: 100 MOA Turret Style: Push/Pull Locking with Zero Reset Illumination: 12 Position Illumination Turret Battery: CR2032 Side-Mounted Fast Focus Diopter: Yes -2 to +2 Lens Coatings: Fully Multi-Coated Anti-Fog Hydrophobic Waterproof: IPX7 Impact Resistance: 1 100 G Force Length: 10.67 in Weight: 20.36 oz Available At: ARMSAGORA
