XS Sight Systems Ghost Ring White Stripe Sight Set for Marlin 336/1894

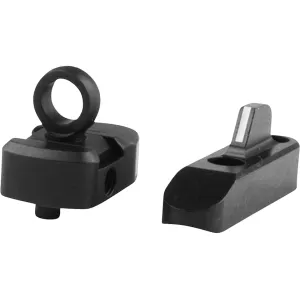

The XS Ghost Ring White Stripe Sight Set is a pair of iron sights for Marlin 336 and Marlin 1894 lever-action rifles, as well as Ruger Model 336 and 1894 rifles fitted with an XS lever rail. It uses a ghost ring rear aperture paired with a white stripe front sight, intended for quicker target acquisition in brushy or heavily forested hunting areas.

The rear aperture adjusts for windage through opposing screws and for elevation by turning the threaded aperture stem. Each 180-degree turn moves point of impact about 1 inch at 100 yards, giving 14 inches of windage and 16 inches of elevation adjustment at 100 yards on a 24-inch sight radius. Steel sights and an aluminum rail carry a matte finish with a hard-coat anodized rail.

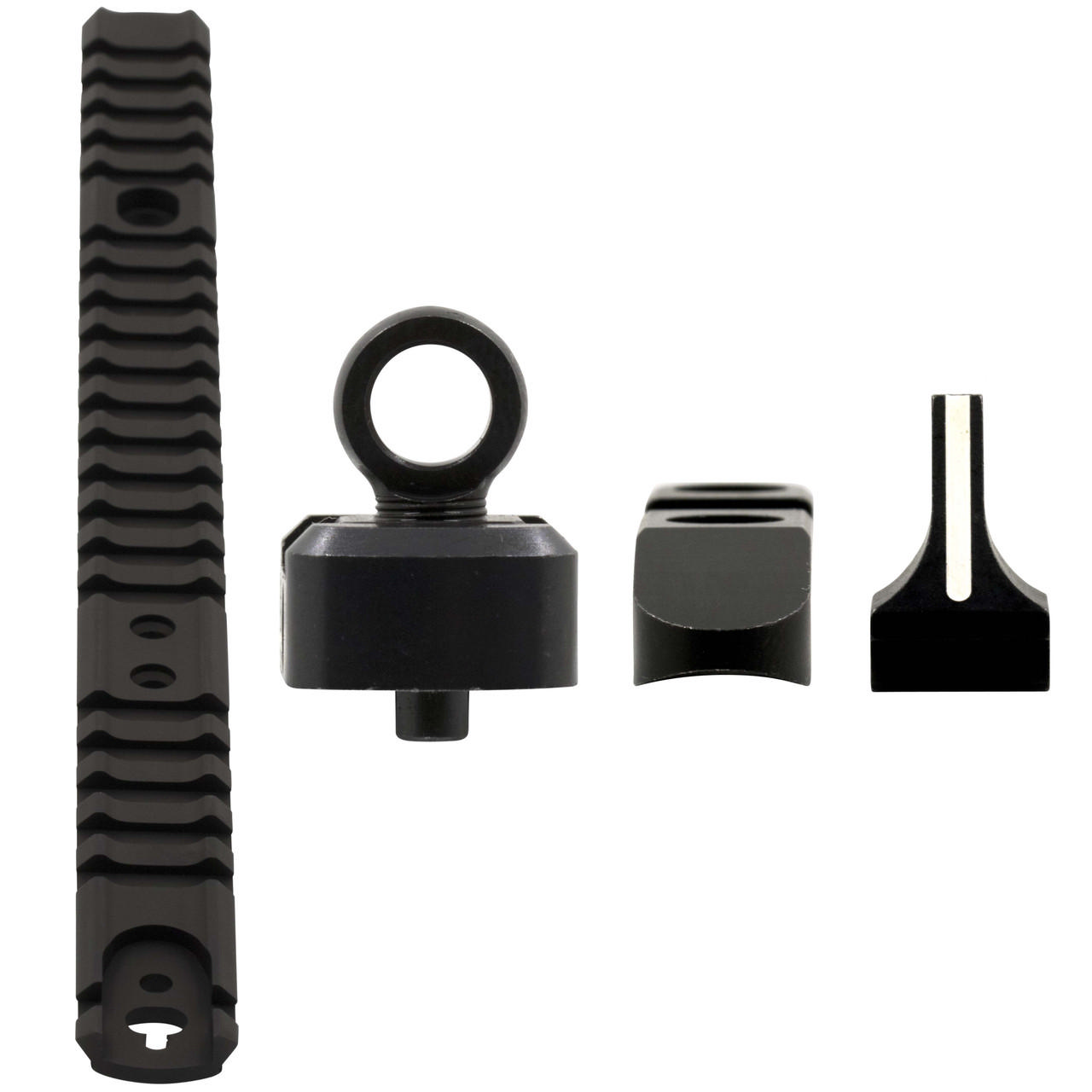

The set includes mounting screws, thread locker, and both .230-inch and .191-inch inside diameter rear apertures. Installation matches the existing screw holes on compatible models.

• Fits: Marlin 336, Marlin 1894, Ruger Model 336/1894 with XS Lever Rail
• Sights: Ghost Ring rear aperture, White Stripe front
• Windage adjustment: 14 inches at 100 yards (24-inch sight radius)
• Elevation adjustment: 16 inches at 100 yards (24-inch sight radius)
• Aperture inside diameters: .230 inch and .191 inch
• Material: Steel sights, aluminum rail
• Finish: Matte, hard-coat anodized rail
• Included: Screws, thread locker, two rear apertures
